Fully Automatic T Shirt Biodegradable Shopping Bags Making Machine

Name: Fully Automatic T Shirt Biodegradable Shopping Bags Making Machine
Brand: Xinda Pelosi
Price: 1 USD

Quality Fully Automatic T Shirt Biodegradable Shopping Bags Making Machine wholesale

Brand Name : Xinda Pelosi

Model Number : XPM

Certification : Machinery Test Report

Place of Origin : Zhejiang

MOQ : 1 set

Price : To be negotiated

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : STANDARD PACKING

Weight : 3800 KG

Voltage : 380V/220V

Product Name : Biodegradable Shopping Bags Making Machine

Key Selling Points : Easy to Operate

Machine Type : Bag Forming Machine

Material : Non Woven Bag

Video outgoing-inspection : Provided

Max speed : 120pcs/min

Dimension(L*W*H) : 11500*1900*2100mm

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop

Contact Now

2024 Latest Design Fully Automatic T-Shirt Biodegradable Shopping Bags Making Machine

Specification :

Material	Rolls of pp spunbond non woven fabric	If you have different requirements, please let us know, and we will provide you with customized solutions based on the actual situation of the machine.
Material	Laminated non woven fabric
Production speed	60-80pcs/min
Fabric thickness	40-100gsm for bag body
Fabric thickness	60-100gsm for bag handle
Bag width	200-450mm
Bag height	300-700mm
Power supplier	220V/380V
Power	18kW
Overall dimension (LWH)	1150019002100mm
Weight	3800kg

Online D-cut punching Bottom gusset and side gusset making Drawstring feeding Optional online T-shirt bag auto punching Online handle attaching Pressure requirements: 0.8-1.0 Mpa (recommended 7.5KW screw air compressor with refrigerate air dryer and 0.6 m3air tank)

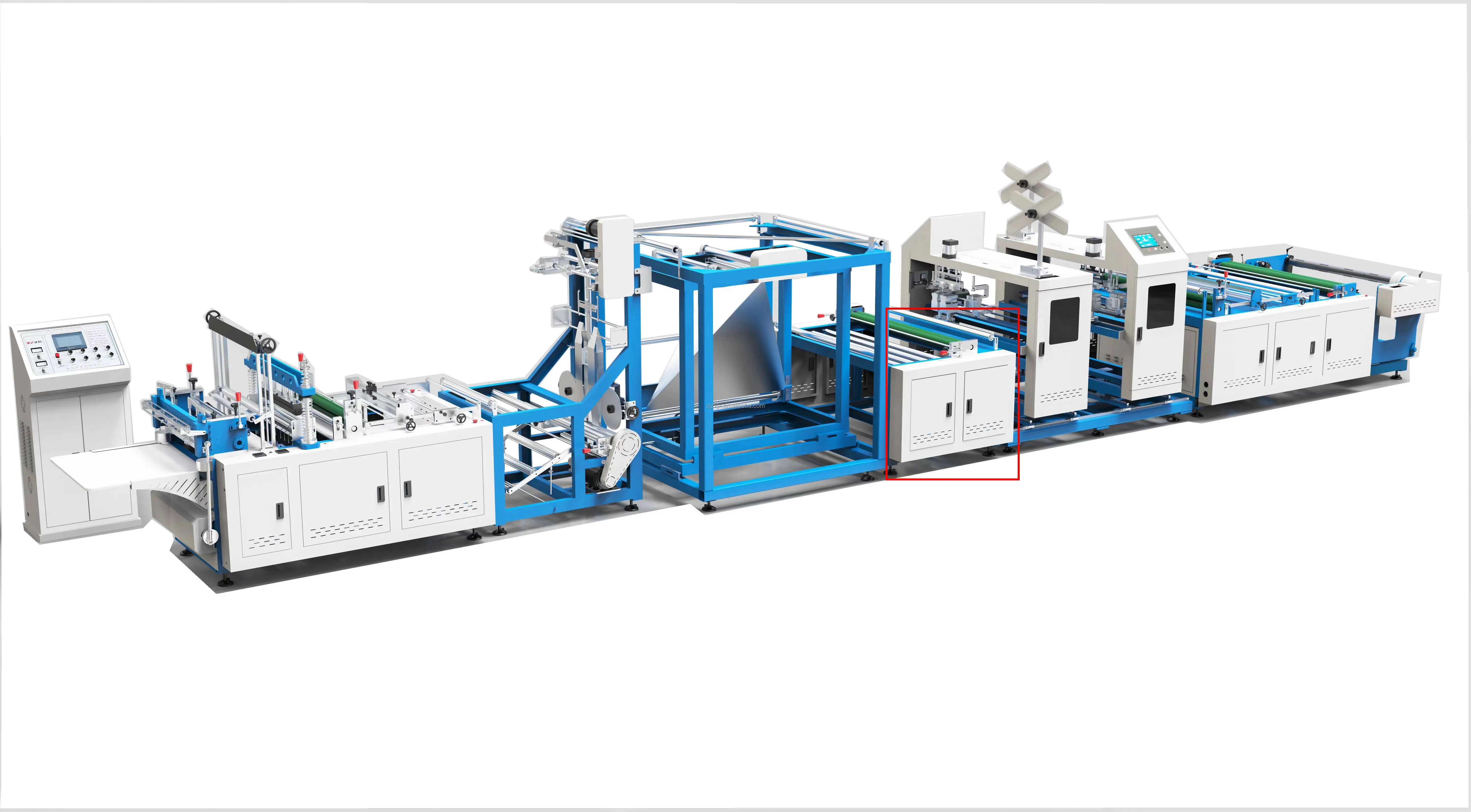

Fully Automatic T Shirt Biodegradable Shopping Bags Making Machine

non woven rolls unwinding

Auto loading material roll(lift by cylinders)
Inflatable shaft to fix the fabric roll when machine working
Auto rectifying deviation system(EPC box and web guider)

Bag mouth folding and sealing by ultrasonic welding
Photocell eye for printing color mark tracking
Custom-made sealing mould is available

online handle attaching

Handle sealing and attaching by ultrasonic welding
Adjusted by touch screen
Man machine interface:touch screen
Motion control:PLC

non woven fabric feeding

stepping motor and rubber roller for fabric feeding

non woven fabric cross folding

Stainless steel(triangular form) for fabric cross folding
Manual web guider

bag gusset forming

Bag bottom/side gusset forming by wheels

The blower removes waste fabric
T- shirt bag sealing by ultrasonic welding

bag sealing and cutting

Adjustable photoelectric sensor for printing color mark tracking
Online D-cut punching, drawstring bag punching
Bag side sealing by ultrasonic welding system
static eliminator device

Double stepping motor feeding system for bag length fix
Man machine interface:touch screen
Motion control:PLC

FAQ :

1. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 70USD/day.

2. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.

3. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.

4. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.

5. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.

6. How many worker do we need running those machines?
Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
